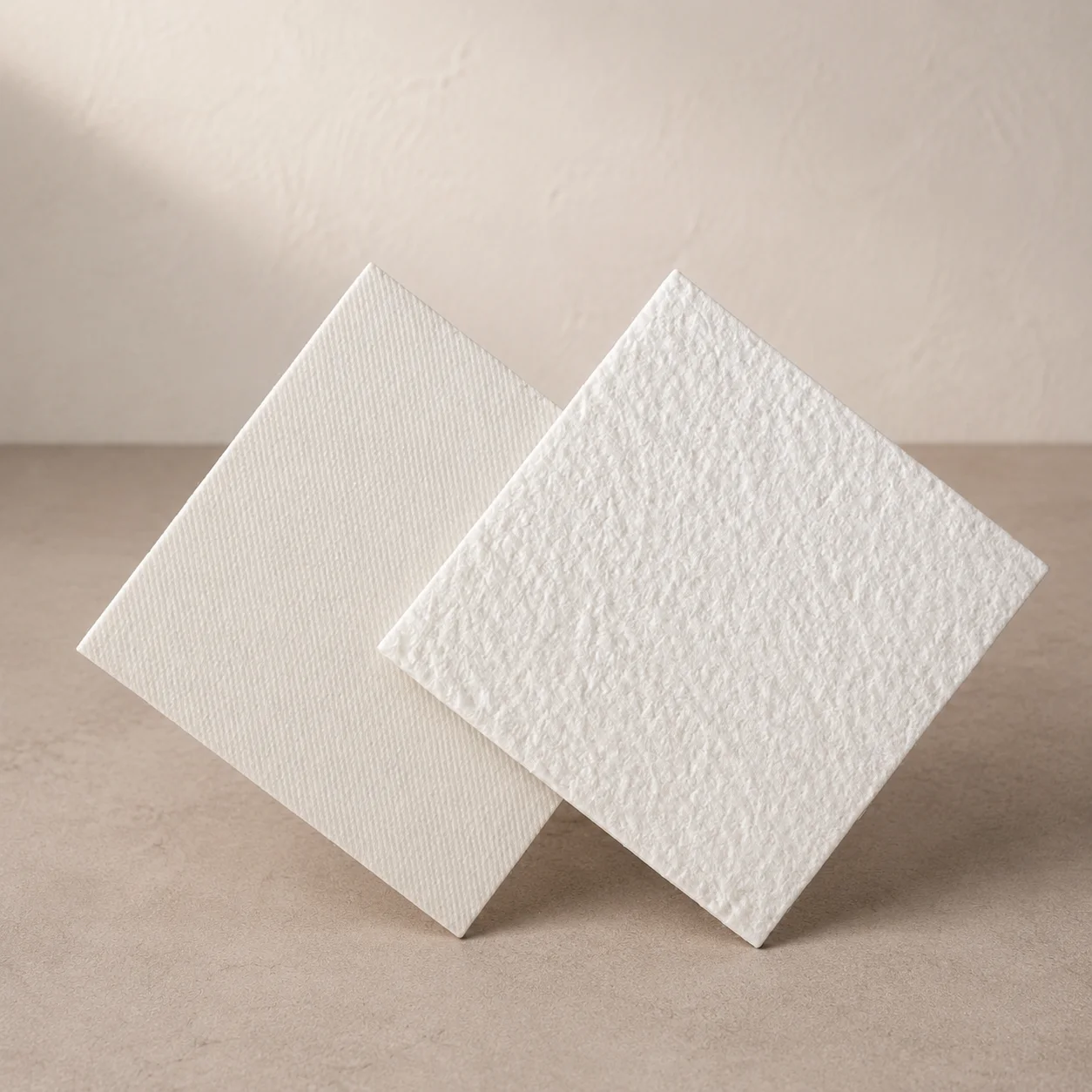

Depth filter sheet
Depth filter sheet is a kind of filter media with a three-dimensional porous structure, which is made of various fibers through special processes.
Overview
What this paper does
Characteristics
For the food and beverage industries
(Also produces pharmacy-grade filter sheets)
The YB series is a cellulose-based depth filtration system using mineral filter aids for beverage, food and other process applications. Grades range from coarse clarification to fine and microbial-reduction filtration. Particles are retained by the tortuous path within the sheet and by adsorption effects. Final product sterility is not guaranteed by the sheet alone and depends on a validated filtration process. Material and food-contact documentation is confirmed by grade and intended use.
- The products can tolerate ethanol, isopropanol, glycerine, weak acids, weak bases, etc.
- Specified grades can withstand heat sterilization at 121 degrees Celsius; confirm the cycle and grade before use.
- Have intercept, adsorption and filtration capacity.
- All materials are treated with a special process to ensure very low dissolution and endotoxin content.
Components
- Usesoon depth filter sheets use materials selected for the specified filtration application.
- Cellulose pulp, high-quality diatomaceous earth, and perlite are used.
Applications
- Wine filtration
- Beer filtration
- Filtration of olive oil and other vegetable oils. Filtration of alcoholic and non-alcoholic beverages
- Filtration in pharmacy and biotechnologies
- Filtration in chemistry, biochemistry and cosmetics
Specifications
Filter Sheet Specification
| Model | Micron Rate (um) | Thickness (mm) | Filter Time (mins) | Wet Strength (kPa) | Moisture (%) | Filtration Range |
|---|---|---|---|---|---|---|
| YB03 | 30-40 | 3.8(±0.1) | 1-3 | 800 | 7 | Coarse Filtration |
| YB06 | 20-30 | 3.8(±0.1) | 3-6 | 1000 | 7 | Clarifying Filtration |
| YB08 | 10-20 | 3.8(±0.1) | 5-10 | 220 | 7 | Clarifying Filtration |
| YB18 | 5-10 | 3.8(±0.1) | 10-20 | 200 | 7 | Fine Filtration |
| YB28 | 1-5 | 3.8(±0.1) | 20-30 | 180 | 7 | Fine Filtration |
| YB38 | 0.8-1 | 3.8(±0.1) | 30-40 | 160 | 7 | Sterile Filtration |
| YB48 | 0.5-0.8 | 3.8(±0.1) | 40-50 | 160 | 7 | Sterile Filtration |
Quality guarantee
- 1. Execute enterprise standard QFT 01-2015
- 2. Conform Chinese Pharmacopoeia 2010 appendix XIE.
- 3. Reference: 21 CFR 177.2260; confirm applicability for the selected grade and intended use.
- 4. Conform AP(2001)1.
| Item | Unit | Limit Value | |
|---|---|---|---|
| Heavy Metal | Pb | Mg/Dm² | 0.003 |
| Cd | Mg/Dm² | 0.003 | |
| Hg | Mg/Dm² | 0.002 | |
| Endotoxin | EU/Ml | ≤0.5 | |
| PH Value | - | <6.5 | |
Gallery

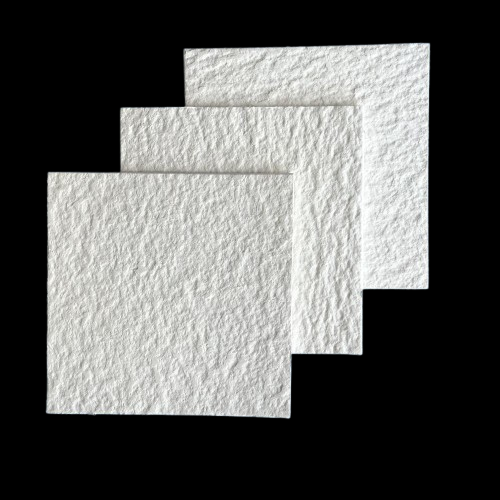

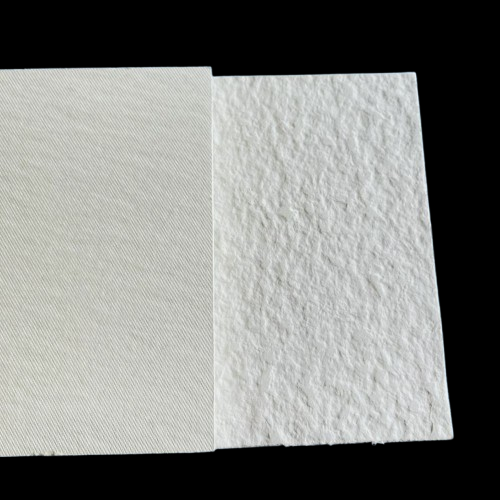

Product Display
